Tesla High-Voltage and Charging Diagnostics: What the Service Screens Really Show
Tesla Service Mode can display a useful map of the high-voltage and charging system: battery state, High Voltage Interlock Loop (HVIL), contactors, pyrotechnic disconnect, Power Conversion System (PCS), drive units and charge-port controller status.
The screen is a diagnostic overview, not proof that every orange component is safe to touch. High-voltage work requires trained personnel, the correct PPE, vehicle electrical isolation and verification with approved test equipment.
Begin with system state
The course screen showed a vehicle-level high-voltage panel with the battery, contactors, PCS and drive-unit branches. Before chasing one fault, confirm the overall state:
- Is the high-voltage battery awake and communicating?
- Is the HVIL complete?
- Are the contactors commanded open or closed?
- Is the pyrotechnic disconnect intact?
- Is high voltage available at the expected branch?
- Are the drive units and PCS reporting normal status?
The same visible symptom, such as “vehicle will not drive” or “DC fast charging unavailable,” can result from different states. A deliberately open contactor during a safe shutdown is not the same as a contactor that failed to close under valid enabling conditions.
HVIL: check the loop before replacing major parts
The HVIL is a low-voltage monitoring circuit routed through high-voltage connectors and covers. If the loop is open, the vehicle can prevent contactor closure to reduce exposure to high voltage.
An HVIL fault can be caused by:
- A connector that is not fully seated
- A damaged interlock pin or harness
- A service cover or disconnect that is not correctly installed
- Corrosion, impact or previous repair damage
- An internal component fault
Use the applicable Tesla HVIL panel and manual procedure to identify the affected section. Do not bypass the loop or force contactors closed.
Contactors and the pyrotechnic disconnect
Pack contactors connect the battery to the vehicle's high-voltage bus. The pyrotechnic disconnect is a protective device designed to interrupt the circuit during specified severe events.
Service Mode can show commanded and reported states, but diagnosis still requires context. Ask:
- Are preconditions for contactor closure satisfied?
- Is the pack voltage plausible?
- Does the controller detect welded, open or unexpected contactor behaviour?
- Is there a crash, isolation or HVIL condition intentionally preventing closure?
- Does the official procedure require a physical resistance, voltage or insulation test?
Never treat a graphic alone as approval to open the battery or replace a contactor.
Isolation resistance is not one universal number
Electrical isolation measures how well the high-voltage system is separated from the vehicle chassis. Moisture, coolant ingress, collision damage, contamination, cable damage or an internal component fault can reduce isolation.
The course stated that a value above 4 MΩ is acceptable. That number must not be generalised. Tesla procedures use model-specific test methods, equipment, connection points and conditions. A displayed estimate, a manual insulation test and an internal battery isolation diagnosis are not interchangeable measurements.
When low isolation is suspected:
- Stop and apply the required HV safety process.
- Review active alerts and when they set.
- Inspect for collision damage, liquid ingress and recent repairs.
- Use Tesla's exact isolation procedure for the vehicle.
- Separate internal battery faults from vehicle-side HV component faults only as instructed.
Use battery information as a pattern, not a verdict
The HV Battery/BMS panels can expose pack state of charge, temperatures, contactor status, HVIL status and, on supported builds, additional brick or sub-pack information.
Look for consistency:
- Are temperature values plausible and reasonably distributed?
- Does pack state agree with the charge display?
- Do contactor and bus-voltage states agree?
- Is an imbalance persistent and supported by alerts?
- Did the condition appear after a software, collision or component-replacement event?
One unusual value should be confirmed against the current procedure and other data before a battery is condemned.

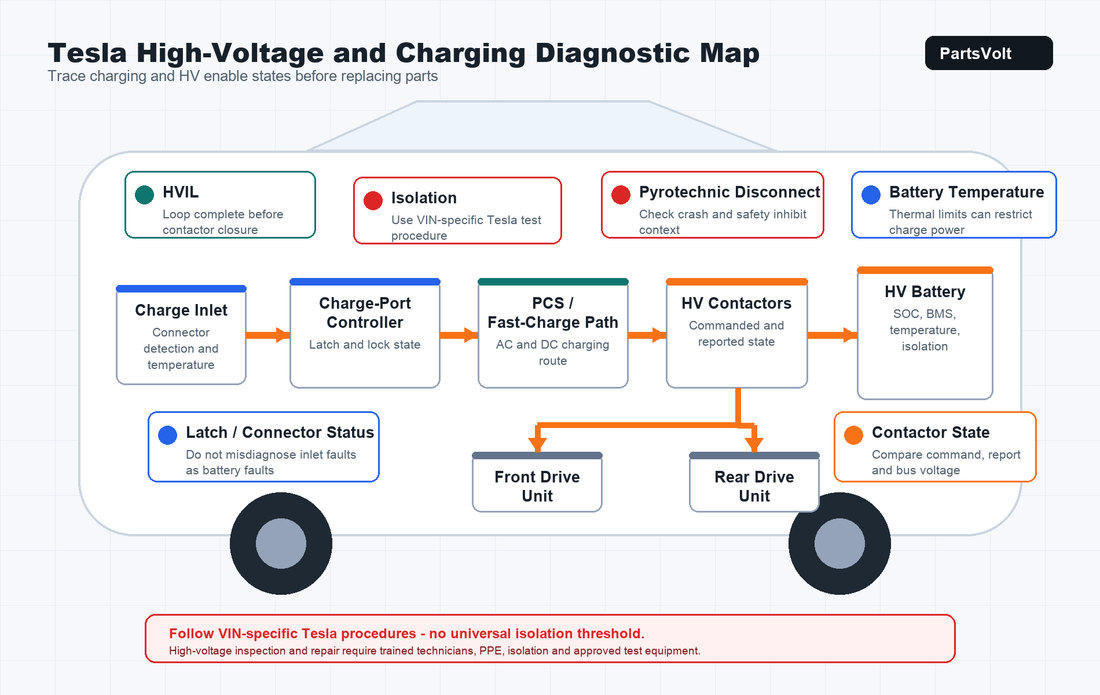

Diagnose charging from source to pack
For a charging complaint, work through the energy path:
- External supply: Confirm the charge source, cable and connector with a known-good comparison where appropriate.
- Charge inlet: Check latch state, connector detection, temperature and visible damage.
- Charge-port controller: Confirm communication and reported lock/latch states.
- PCS/on-board charging path: Review relevant alerts and status for AC charging.
- Fast-charge path: Confirm the HV battery and fast-charge contactor conditions on vehicles that expose these states.
- HV battery: Check SOC, temperature, isolation, HVIL and contactor readiness.
- Thermal limits: Determine whether battery temperature or cooling conditions are restricting charge power.
The course charge screen showed inlet connection, latch and temperature information beside the battery and PCS state. That layout is useful because it keeps the whole chain visible. A charge-port latch problem should not be mistaken for a failed battery, and a pack safety inhibit should not be misdiagnosed as a bad inlet.
Final verification
After the verified repair:
- Reassemble all interlocks and covers exactly as specified.
- Complete required software, configuration or commissioning steps.
- Recheck active alerts and DTCs.
- Verify contactor, HVIL and isolation status.
- Test AC and/or DC charging under the conditions relevant to the complaint.
- Confirm that charge current and thermal behaviour are stable.
Final takeaway
The high-voltage screen is a system map. Use it to locate the blocked stage: HVIL, isolation, contactor control, charge inlet, PCS, fast-charge path or battery. Let the official Tesla procedure determine the physical test and acceptance criteria.
High-voltage warning: This article is for diagnostic understanding only. High-voltage inspection and repair must be performed by appropriately trained technicians using the specified PPE, isolation procedure and test equipment.
PartsVolt workshop note
For PartsVolt readers, the practical value is the sequence: map the high-voltage and charging path, confirm the inhibit condition, then test the verified section before ordering Tesla repair parts.
