EV DC Fast Charging Not Working? A Practical Troubleshooting Guide

When an electric vehicle refuses to start a DC fast-charging session, the charger itself is only one possible cause. A reliable diagnosis should move from simple external checks to communication, high-voltage and battery-system testing.

This practical workflow is designed for EV owners, workshops and technicians who need a structured way to isolate the fault without replacing parts unnecessarily.

Safety first

High-voltage systems can cause serious injury or death. Only trained personnel should inspect high-voltage components. Wear correctly rated insulated PPE, isolate the vehicle as required and follow the vehicle manufacturer’s service procedures.

1. Confirm vehicle and charger compatibility

Start by confirming that the vehicle supports DC fast charging and that the charging station is operational. Check that the charger’s output, connector type and cable specifications are compatible with the vehicle. An incompatible adapter, cable or charger configuration can prevent the session from starting.

2. Check the charging environment

• Look for alarms or fault messages on the charging station.
• Confirm network communication is available.
• Make sure the emergency-stop button has been released.
• Check whether the station is applying an output-power restriction.

If possible, test the vehicle at another known-good fast charger. This is a quick way to separate a vehicle-side problem from a station-side fault.

3. Verify the vehicle state

The vehicle should be in Park with the electronic parking brake engaged. Check for active warning messages and confirm that the traction battery temperature is within the permitted fast-charging range. Charging power may be limited or unavailable when the battery is too cold, too hot or already close to full.

4. Inspect the connector and cable

Make sure the charging plug is fully inserted and locked. Inspect the plug, vehicle inlet and pins for contamination, corrosion, overheating or physical damage. Check the cable for cuts, kinks or sharp bends. An abnormal connector temperature can also interrupt the session.

5. Test the handshake and CAN communication

The vehicle and charger must complete a communication handshake before high-voltage charging begins. Diagnostic checks should confirm that the handshake completes, CAN communication is stable and no protocol timeout codes are present. If communication fails, inspect the relevant wiring, terminals and control modules.

6. Review charging strategies and limits

Fast-charging power can be restricted by the vehicle’s charging strategy, the battery management system (BMS), the charging station’s power limit, time-of-use controls or site load management. Review live data and configuration before treating a reduced-power condition as a hardware failure.

7. Inspect the high-voltage system

For qualified technicians, the next stage is to check high-voltage fuses, contactors, connectors and related components. Look for open circuits, poor contact, abnormal resistance and signs of overheating. Any repair must follow the manufacturer’s isolation, verification and commissioning procedures.

8. Evaluate the traction battery

Review battery-module voltage and temperature data, BMS fault codes, insulation resistance and cell consistency. A battery fault may prevent fast charging even when slower AC charging remains available.

9. Verify the repair

After every adjustment, repair or component replacement, repeat the fast-charging test. Confirm that charging power is restored and stable and that no warning messages return.

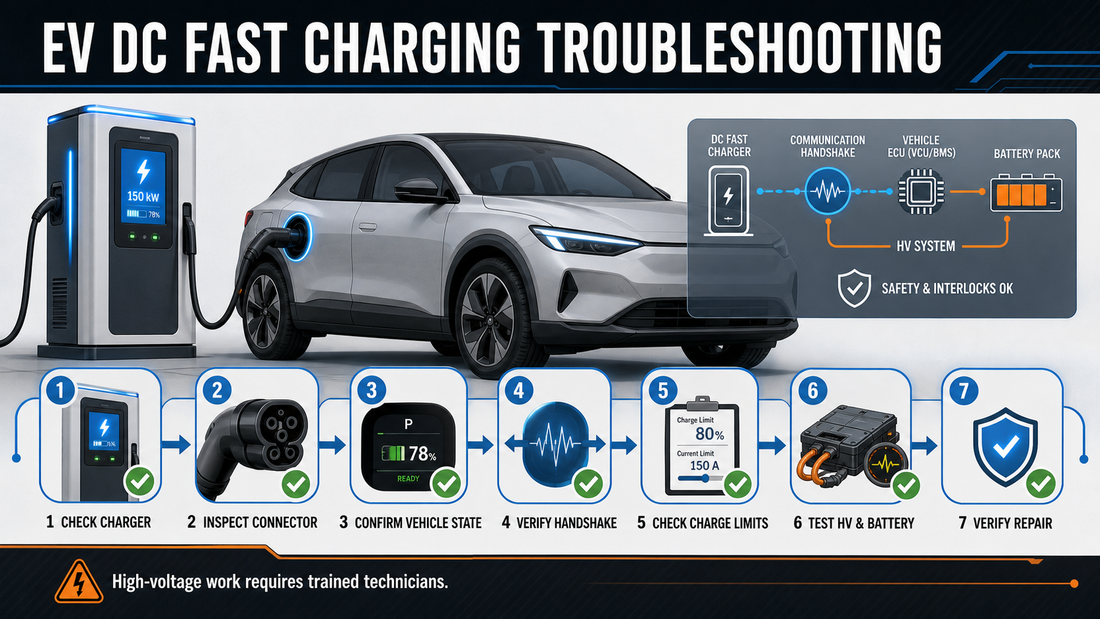

A practical diagnostic order

Check the simple items first: environment, vehicle state, connector and communication. Only then move into high-voltage and battery diagnosis. This approach saves time, reduces unnecessary parts replacement and keeps the repair process evidence-based.
